Authorised Australian Technical Distributor for B&R Automation, IDEM Safety Switches, Carlo Gavazzi & Secomea Secure Remote Communications

Who we are

Industrial automation distribution and support since 2003

DAANET is a Geelong based industrial automation distributor supplying B&R Automation, IDEM Safety, Carlo Gavazzi and Secomea to OEMs, system integrators and manufacturers across Australia and New Zealand. We pair quality European automation products with local stock and practical technical support, so your machines and projects keep moving.

More about DAANET →

Why DAANET

Why work with DAANET

B&R Value Provider: DAANET is B&R's first Authorised Value Provider in Australia
Local stock and pricing: Australian pricing, with free express shipping on orders over $200
Technical support: local help with product selection, setup and troubleshooting
Project support: project management and engineering support for automation projects

Our brands

Brands we distribute and support

B&R Automation: PLCs, servo drives, HMIs, industrial PCs and machine vision
IDEM Safety: safety interlocks, rope pull switches and emergency stops
Carlo Gavazzi: sensors, energy meters, timers and relays
Secomea: secure remote access for machines and OT networks

Industries

Industries we support

Shop

| SHOP

Secomea SiteManager 1539 4G Global, Secure Remote Access Gateway, 10 Devices, DIN Rail

$1,500.00

The Secomea SiteManager 1539 4G Global is an industrial remote access gateway with a built in 4G modem. It gives engineers, OEMs and system integrators secure remote access to PLCs, HMIs and drives on site, so faults can be diagnosed and fixed without travelling. It also includes a Data Collection Module that gathers machine data and sends it to cloud platforms. The 4G Global version covers the Australian region, which makes it a good fit for remote sites with no reliable wired internet.

DAANET is a Secomea distributor for Australia. We supply SiteManager hardware and Secomea subscriptions locally and provide technical support to help you set up secure remote access for your machines and sites.

Typical applications

Remote support of machines by OEMs and system integrators
Water, wastewater and utilities sites
Mining and remote infrastructure
Factory equipment where IT network access is restricted
Machine data collection for monitoring and reporting

Key specifications

Manufacturer: Secomea
Part number: SiteManager 1539 4G Global
Product range: SiteManager 15xx series
Device agents: 10
Ethernet: 4 x 10/100 Mbit RJ45 (1 x uplink, 3 x device ports, managed switch)
Cellular: Integrated 4G LTE modem, Micro SIM slot, SMA antenna connector
Other ports: 1 x USB 2.0 host, 1 x RS232 DB9 serial
Data collection: OPC UA, Modbus TCP, Siemens S7, EtherNet/IP, MQTT and HTTP GET, with cloud connection to Azure IoT Hub and AWS IoT Core
Storage: Micro SD card slot for store and forward data (card not included)
I/O: 2 x digital inputs, 1 x relay output, 1 x digital output
Power supply: 12 to 24 VDC, screw terminals, max 5 W
Mounting: DIN rail, metal case, IP20
Operating temperature: minus 25 to 60 °C
Approvals: CE, RCM, UL/cUL Listed, FCC (see datasheet for details)

Downloads

SiteManager 15xx and 35xx series datasheet (PDF)

Need help setting up secure remote access for your machines or sites? Contact DAANET to discuss your application.

Read more →

IDEM 231001 ES-SS Stainless Steel Emergency Stop, Twist Release, 2NC + 1NO, M20, IP69K

$410.64

The IDEM 231001 is a heavy duty ES-SS emergency stop station with a mirror polished 316 stainless steel housing, built for exposed conveyors and machines that are washed down or used outdoors. A double seal gasket and stainless internal screws maintain IP69K protection, and the twist to release actuator latches until it is deliberately reset. It comes with 2NC + 1NO contacts and two M20 conduit entries for straightforward through wiring.

DAANET has distributed IDEM Safety Switches in Australia since 2009. We supply IDEM emergency stops locally and provide technical support to help you choose the right device for your machine guarding and safety system.

Typical applications

Food and beverage processing with high pressure washdown
Conveyors and materials handling
Mining, quarrying and outdoor plant
Water and wastewater treatment
Pharmaceutical and hygienic production areas

Key specifications

Manufacturer: IDEM Safety Switches
Part number: 231001
Product range: ES-SS emergency stop, 316 stainless steel
Actuation: Emergency stop, twist to release
Contacts: 2NC + 1NO, double break Type Zb to IEC 60947-5-1
Conduit entries: 2 x M20
Housing material: 316 grade stainless steel, mirror polished
Button material: UV resistant polyester
Utilisation category: AC15 A300, 240 V 3 A, 120 V 6 A
Thermal current (Ith): 10 A
Rated insulation voltage (Ui): 500 V
Termination: Clamp, up to 2.5 mm² conductors
Enclosure protection: IP67, IP69K (NEMA 6)
Operating temperature: minus 25 to 80 °C
Mechanical reliability B10d: 1.5 x 10⁶ operations at 100 mA load
Safety rating: Up to PLe (ISO 13849-1) and SIL3 (EN 62061), depending on system architecture
Approvals: cULus

Downloads

Related part numbers

231002 ES-SS, ½" NPT, 2NC + 1NO
231003 ES-SS, M20, 3NC
231004 ES-SS, ½" NPT, 3NC

Need help choosing an emergency stop for a washdown or outdoor area? Contact DAANET to discuss your application.

Read more →

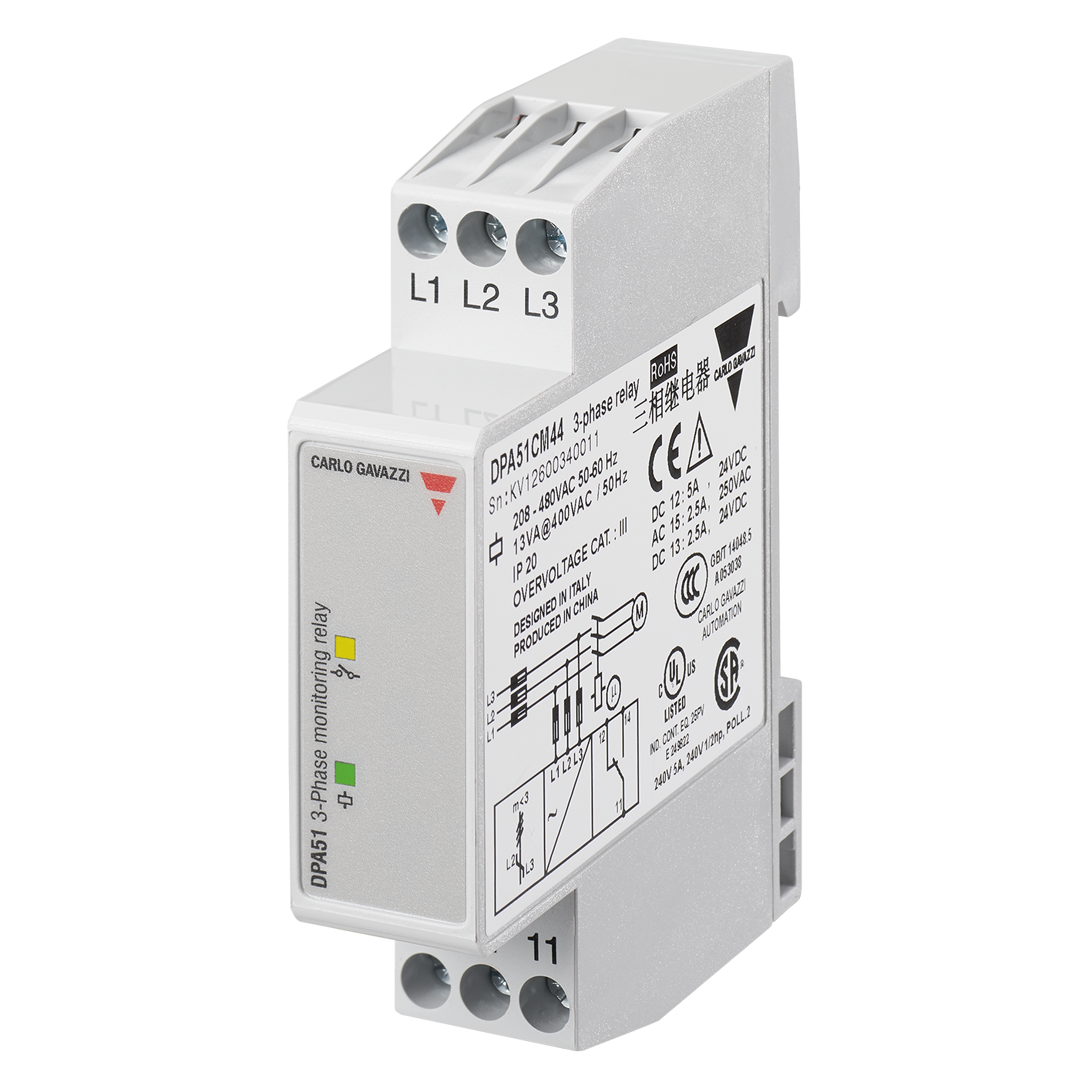

Carlo Gavazzi DPA51CM44 3 Phase Monitoring Relay, Phase Loss and Sequence, 17.5 mm DIN Rail

$149.00

The Carlo Gavazzi DPA51CM44 is a compact 3 phase monitoring relay that protects motors, pumps and machines from phase loss and incorrect phase sequence. The relay operates only when all three phases are present and in the correct sequence, so equipment cannot start or keep running on a faulty supply. It also detects regenerated voltage, which helps catch a lost phase even while a motor is still turning.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DPA51CM44 locally and provide technical support to help you select the right monitoring relay for your switchboard or machine.

Typical applications

Motor protection on pumps, fans and compressors
Conveyors and materials handling
HVAC plant and chillers
Machine control panels and switchboards
Generator and supply changeover monitoring

Key specifications

Manufacturer: Carlo Gavazzi
Part number: DPA51CM44
Product range: DPA51
Function: 3 phase loss and phase sequence monitoring
Nominal voltage: 208 to 480 VAC (177 to 552 VAC operating range)
Frequency: 50 to 60 Hz
Power supply: Self powered from the measured phases
Output: 1 x SPDT relay, AC1 5 A at 250 VAC, DC12 5 A at 24 VDC
Indication: Green LED for power, yellow LED for relay status
Housing: 17.5 mm modular DIN rail, IP20
Operating temperature: minus 20 to 60 °C
Approvals: UL508

Downloads

Need help choosing a phase monitoring relay? Contact DAANET to discuss your application.

Read more →

Carlo Gavazzi DMB51CW24 multifunction timer relay

Carlo Gavazzi DMB51CW24 Multifunction Timer, 7 Functions, 12 to 240 VAC/DC, SPDT, 17.5 mm DIN Rail

$147.00

The Carlo Gavazzi DMB51CW24 is a compact multifunction timer for control panels and machines. Seven timing functions and seven time ranges are selected on the front knobs, so one part can cover delay on, interval, delay off and recycling duties. The wide 12 to 240 VAC/DC supply means the same timer suits most control voltages, which helps keep spares simple.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DMB51CW24 locally and provide technical support to help you select the right product for your application.

Typical applications

Motor and pump start delays
Fan and ventilation run on timers
Conveyor and machine sequencing
Lighting and HVAC control
Spare timer for mixed voltage panels

Key specifications

Manufacturer: Carlo Gavazzi
Part number: DMB51CW24
Product range: DMB51
Type: Multifunction timer
Functions: 7: delay on operate, interval, interval on trigger open, double interval, delay on release, symmetrical recycler ON first, symmetrical recycler OFF first
Time range: 0.1 s to 100 h in 7 ranges
Power supply: 12 to 240 VAC/DC
Output: 1 x SPDT relay, AC1 5 A at 250 VAC
Housing: 17.5 mm modular DIN rail, IP20
Operating temperature: minus 25 to 60 °C
Approvals: cULus, RCM, CCC

Downloads

Need help choosing the right timer? Contact DAANET to discuss your application.

Read more →

Carlo Gavazzi EM27072DMV53X2SX EM270 multi circuit energy analyser

Carlo Gavazzi EM27072DMV53X2SX Multi Circuit Energy Analyser, 2 x 3 Phase Loads, Dual RS485 Modbus RTU

$675.00

The Carlo Gavazzi EM27072DMV53X2SX is an EM270 multi circuit energy analyser that measures up to two three phase circuits, or up to six single phase circuits, from one compact unit. Current is measured through Carlo Gavazzi TCD current transformer blocks that plug in with RJ11 connectors, which makes wiring fast and reduces mistakes on site. Two RS485 ports allow simple Modbus RTU daisy chaining to a BMS, PLC or energy monitoring system.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the EM27072DMV53X2SX locally and provide technical support to help you select the right product for your application.

Typical applications

Sub metering in commercial buildings and switchboards
Monitoring two loads or feeders with one meter
Data centre and tenancy energy monitoring
Retrofit metering where space is tight
Energy reporting into BMS, PLC and SCADA systems

Key specifications

Manufacturer: Carlo Gavazzi
Part number: EM27072DMV53X2SX
Product range: EM270
Type: Multi circuit energy analyser
Circuits: Up to 2 three phase or 6 single phase circuits
Voltage: 160 to 240 V L-N, 277 to 415 V L-L
Frequency: 50 or 60 Hz
Current inputs: Via TCD0W or TCDxX current transformer blocks, ordered separately
Accuracy: Active energy equivalent to class 1 (EN 62053-21), reactive energy equivalent to class 2 (EN 62053-23)
Energy metering: Consumption, or consumption and generation
Communication: 2 x RS485 Modbus RTU for daisy chain connection
Display: 2 line LCD
Power supply: Self powered
Mounting: DIN rail, or 72 x 72 mm panel mount
Protection: IP40 front, IP20 terminals
Operating temperature: minus 25 to 55 °C
Approvals: CE, cULus, UKCA

Compatible current sensors

Carlo Gavazzi TCD0W current transformer blocks
Carlo Gavazzi TCD series (TCDxX) current transformer blocks
Contact DAANET to confirm the right TCD block for your cable size and current

Downloads

Need help choosing an energy analyser and current sensors? Contact DAANET to discuss your application.

Read more →

Carlo Gavazzi DBB01DM24 True Delay on Release Timer, 0.1 to 600 s, 24 to 240 VAC/DC, DPDT

$210.00

The Carlo Gavazzi DBB01DM24 is a true delay on release timer with a DPDT output. The relay pulls in as soon as power is applied, and when power is removed the timer keeps the relay energised for the set time before releasing, with no separate supply needed during timing. This makes it well suited to run on functions such as fan or pump overrun after a machine or circuit switches off.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DBB01DM24 locally and provide technical support to help you select the right product for your application.
