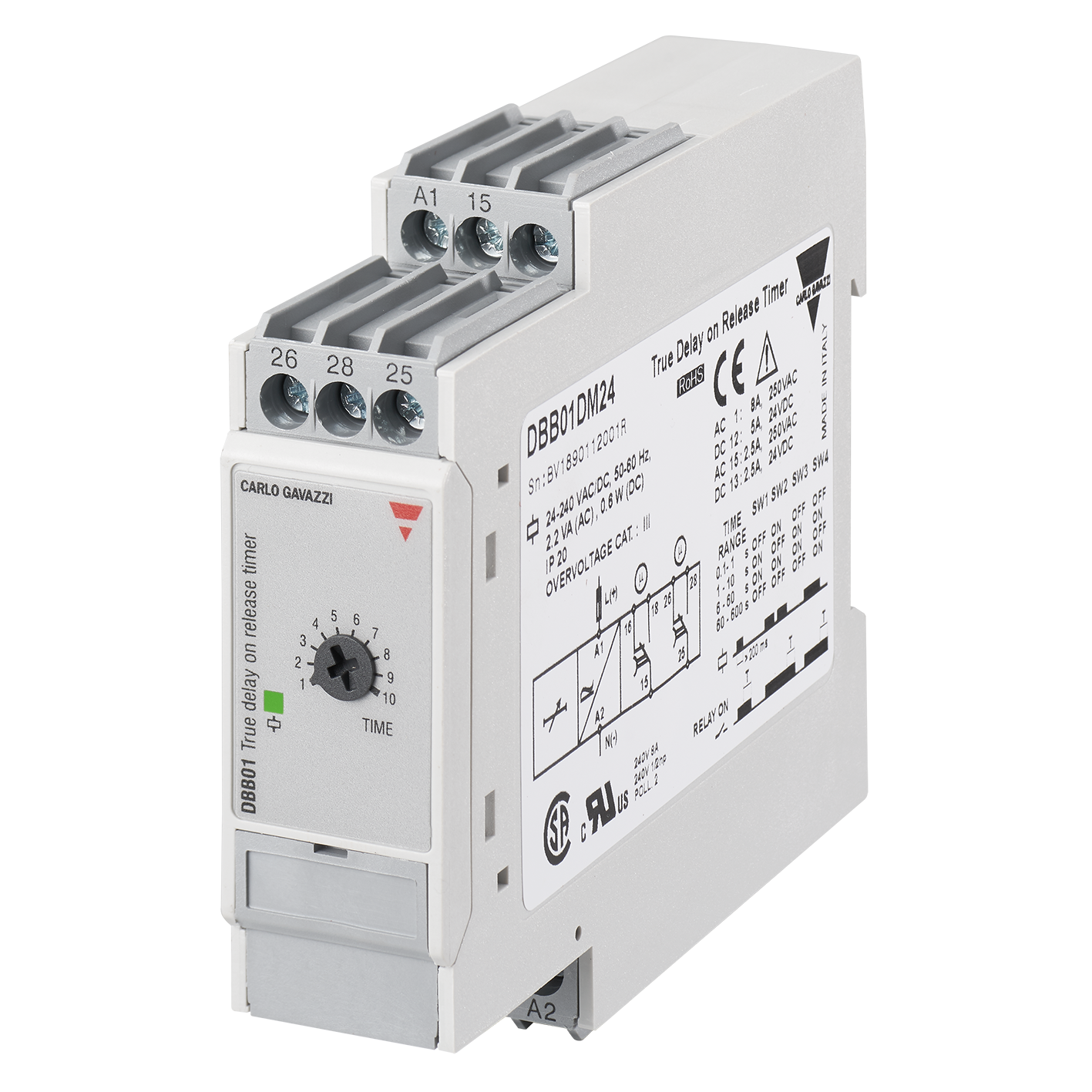

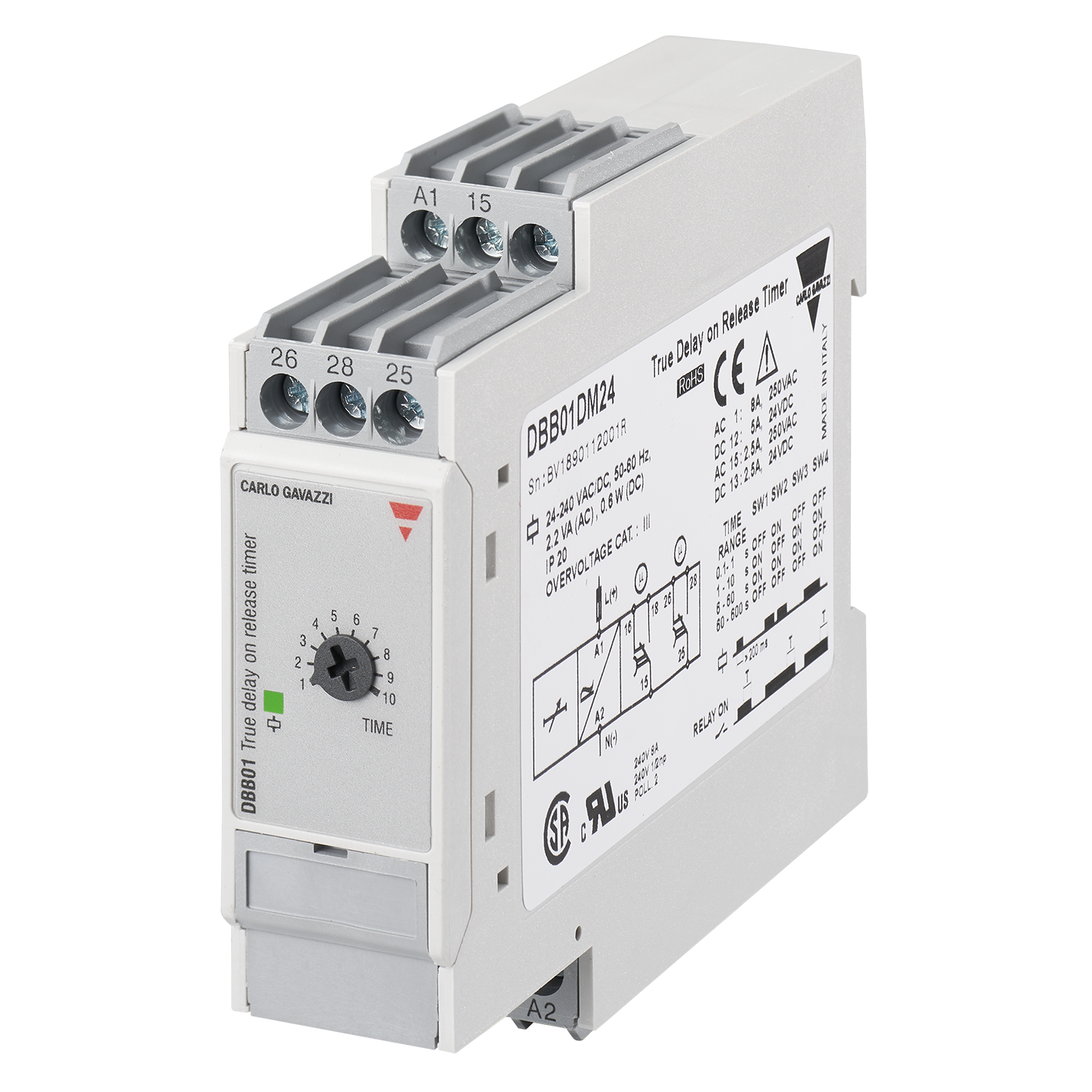

Carlo Gavazzi DBB01DM24 True Delay on Release Timer, 0.1 to 600 s, 24 to 240 VAC/DC, DPDT

The Carlo Gavazzi DBB01DM24 is a true delay on release timer with a DPDT output. The relay pulls in as soon as power is applied, and when power is removed the timer keeps the relay energised for the set time before releasing, with no separate supply needed during timing. This makes it well suited to run on functions such as fan or pump overrun after a machine or circuit switches off.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DBB01DM24 locally and provide technical support to help you select the right product for your application.

Typical applications

• Fan and extraction run on after shutdown

• Pump and cooling overrun

• Lighting and HVAC off delays

• Holding a circuit through short supply interruptions

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DBB01DM24

• Product range: DBB01

• Type: True delay on release timer, capacitor powered timing

• Time range: 0.1 to 600 s in 4 ranges, set by DIP switches and front knob

• Power supply: 24 to 240 VAC/DC

• Output: DPDT relay, AC1 8 A at 250 VAC

• Housing: 22.5 mm DIN rail, 22.5 x 80 x 99.5 mm, IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: UL, CSA

Downloads

• DBB01 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing the right timer? Contact DAANET to discuss your application.
