The Carlo Gavazzi DAA01CM24 is a delay on operate timer with seven selectable time ranges from 0.1 s to 100 h. When power is applied the timer starts, and the 8 A SPDT relay switches once the set time has elapsed. A single part covers both 24 VDC and 24 to 240 VAC control circuits, which keeps spares simple across different panels.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DAA01CM24 locally and provide technical support to help you select the right product for your application.

Typical applications

• Staggered motor and pump starts

• Start up delays after power restoration

• Conveyor and machine sequencing

• HVAC and lighting control

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DAA01CM24

• Product range: DAA01

• Type: Delay on operate timer, automatic start

• Time range: 0.1 s to 100 h in 7 ranges

• Power supply: 24 VDC or 24 to 240 VAC

• Output: SPDT relay, AC1 8 A at 250 VAC

• Housing: 22.5 mm DIN rail, 22.5 x 80 x 99.5 mm, IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: cULus, RCM

Downloads

• DAA01 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing the right timer? Contact DAANET to discuss your application.

The Carlo Gavazzi DAA51CM24 is a compact delay on operate timer in a 17.5 mm housing, with seven selectable time ranges from 0.1 s to 100 h. When power is applied the timer starts, and the SPDT relay switches once the set time has elapsed. One part covers both 24 VDC and 24 to 240 VAC control circuits, which keeps spares simple.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DAA51CM24 locally and provide technical support to help you select the right product for your application.

Typical applications

• Staggered motor and pump starts

• Start up delays after power restoration

• Conveyor and machine sequencing

• Space saving timer for crowded DIN rails

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DAA51CM24

• Product range: DAA51

• Type: Delay on operate timer, automatic start

• Time range: 0.1 s to 100 h in 7 ranges

• Power supply: 24 VDC or 24 to 240 VAC

• Output: SPDT relay, AC1 5 A at 250 VAC

• Housing: 17.5 mm DIN rail, 17.5 x 81 x 67.2 mm, IP20

• Operating temperature: minus 25 to 60 °C

• Approvals: cULus, RCM, CCC

Downloads

• DAA51 and DAA71 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing the right timer? Contact DAANET to discuss your application.

The Carlo Gavazzi DBB01DM24 is a true delay on release timer with a DPDT output. The relay pulls in as soon as power is applied, and when power is removed the timer keeps the relay energised for the set time before releasing, with no separate supply needed during timing. This makes it well suited to run on functions such as fan or pump overrun after a machine or circuit switches off.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DBB01DM24 locally and provide technical support to help you select the right product for your application.

Typical applications

• Fan and extraction run on after shutdown

• Pump and cooling overrun

• Lighting and HVAC off delays

• Holding a circuit through short supply interruptions

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DBB01DM24

• Product range: DBB01

• Type: True delay on release timer, capacitor powered timing

• Time range: 0.1 to 600 s in 4 ranges, set by DIP switches and front knob

• Power supply: 24 to 240 VAC/DC

• Output: DPDT relay, AC1 8 A at 250 VAC

• Housing: 22.5 mm DIN rail, 22.5 x 80 x 99.5 mm, IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: UL, CSA

Downloads

• DBB01 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing the right timer? Contact DAANET to discuss your application.

The Carlo Gavazzi DBB51CM2410M is a compact true delay on release timer in a 17.5 mm housing, set between 60 and 600 seconds. The relay pulls in when power is applied, and when power is removed it stays energised for the set time before releasing, with no separate supply needed during timing. It suits longer run on functions such as fan, pump or cooling overrun.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DBB51CM2410M locally and provide technical support to help you select the right product for your application.

Typical applications

• Fan and extraction run on after shutdown

• Pump and cooling overrun

• Lighting and HVAC off delays

• Space saving timer for crowded DIN rails

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DBB51CM2410M

• Product range: DBB51

• Type: True delay on release timer

• Time range: 60 to 600 s

• Power supply: 24 VDC or 24 to 240 VAC

• Output: SPDT relay, AC1 5 A at 250 VAC

• Housing: 17.5 mm DIN rail, 17.5 x 81 x 67.2 mm, IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: UL, CSA

Downloads

• DBB51 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing the right timer? Contact DAANET to discuss your application.

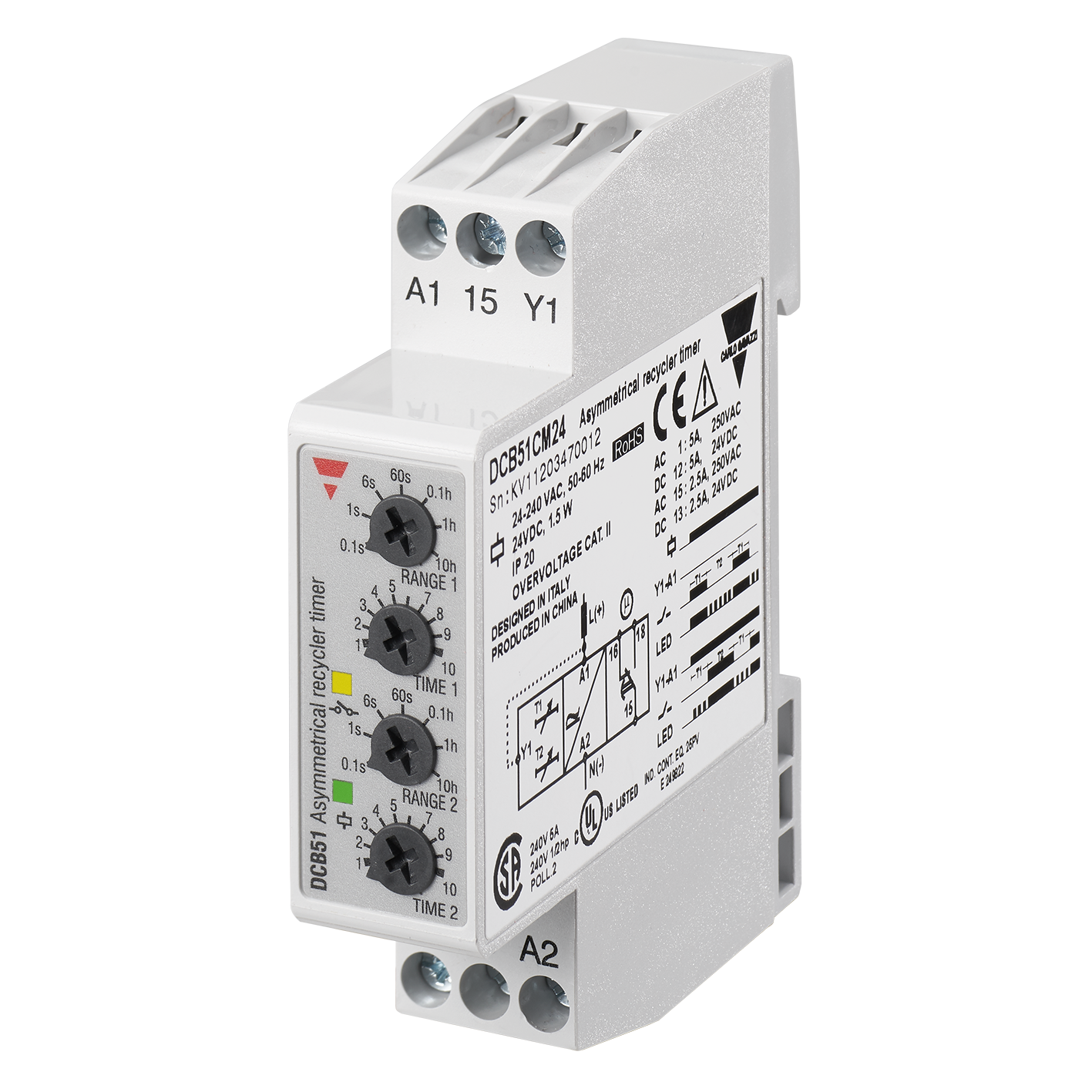

The Carlo Gavazzi DCB51CM24 is a compact asymmetrical recycler timer, also called a cyclic or flasher timer, with separately adjustable ON and OFF times. It repeatedly switches its output on and off for as long as power is applied, and can be set to start with either the ON or OFF period. Both times can be set from 0.1 s to 100 h, in a 17.5 mm housing.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DCB51CM24 locally and provide technical support to help you select the right product for your application.

Typical applications

• Intermittent pump, fan and lubrication cycles

• Flashing beacons and alarm signals

• Periodic flushing, dosing and agitation

• Cyclic testing and machine sequences

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DCB51CM24

• Product range: DCB51

• Type: Asymmetrical recycler timer, ON or OFF first selectable

• Time range: 0.1 s to 100 h in 7 ranges, separate ON and OFF settings

• Power supply: 24 VDC or 24 to 240 VAC

• Output: SPDT relay, AC1 5 A at 250 VAC

• Housing: 17.5 mm DIN rail, 17.5 x 81 x 67.2 mm, IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: UL, CSA

Downloads

• DCB51 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing the right timer? Contact DAANET to discuss your application.

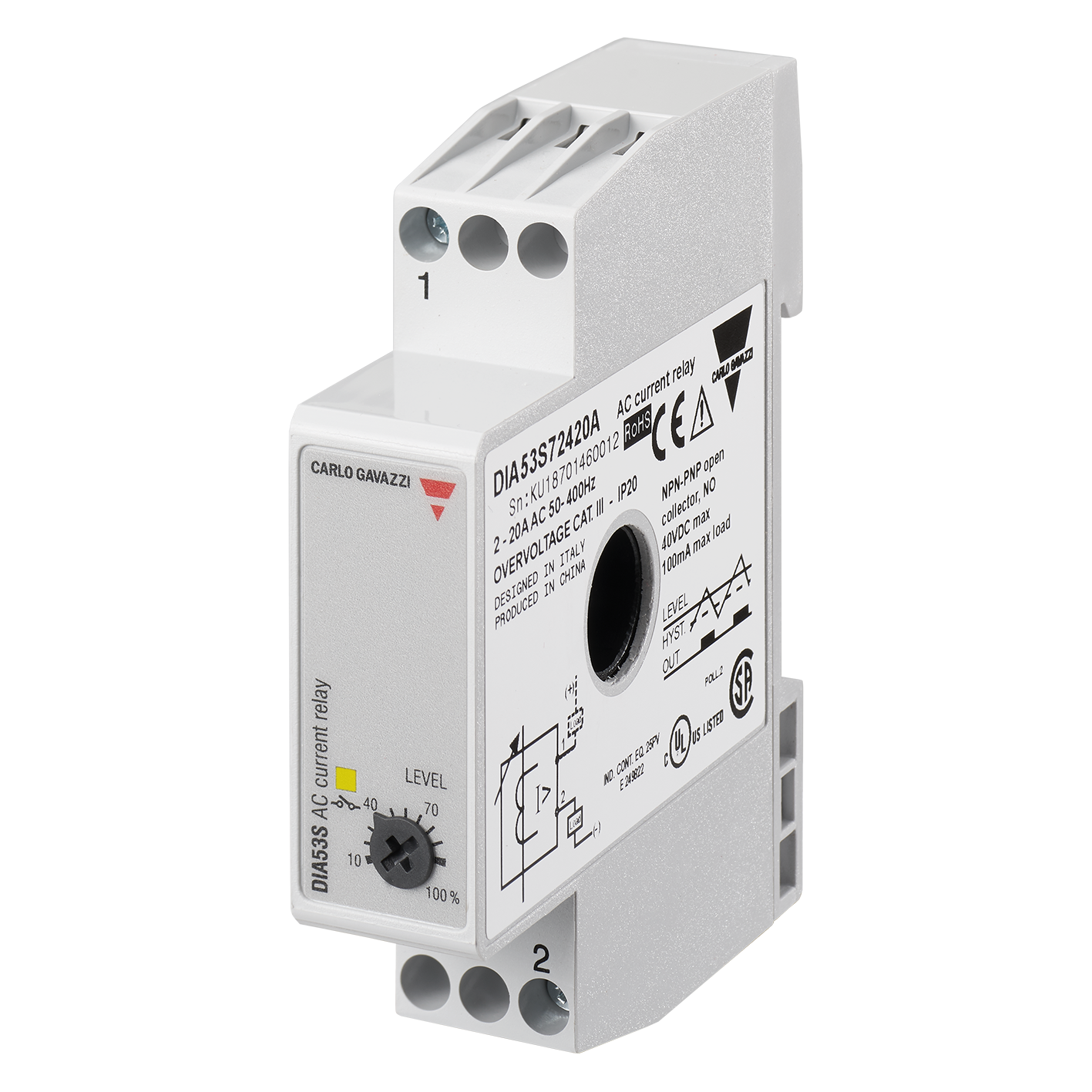

The Carlo Gavazzi DIA53S72420A is a self powered, 2 wire AC current monitoring relay with a built in current transformer. The monitored cable passes through the 12 mm hole, and the solid state output switches when the current rises above the knob adjusted set point of 2 to 20 A. It is a simple way to confirm that a motor, heater or pump is actually drawing current.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DIA53S72420A locally and provide technical support to help you select the right current monitoring relay for your application.

Typical applications

• Confirming a motor, pump or fan is running

• Heater and element monitoring

• Overload and jam detection

• Status signals to a PLC

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DIA53S72420A

• Product range: DIA53 current monitoring relays

• Function: 1 phase AC overcurrent monitoring

• Input range: 2 to 20 A AC, built in CT, 12 mm hole

• Max. continuous current: 40 A AC

• Supply: Self powered, 2 wire connection

• Output: NPN/PNP open collector, normally open, max. 100 mA, 40 VDC

• Reaction time: Under 300 ms

• Hysteresis: 7 to 13 % of set point

• Frequency range: 45 to 400 Hz

• Housing: 17.5 mm DIN rail

• Degree of protection: IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: UL, CSA, CE

Related part numbers

• DIA53S72420AF, 2 to 20 A, fast reaction time

• DIA53S72450A, 5 to 50 A

• DIA53S724100A, 10 to 100 A

Downloads

• DIA53 datasheet (PDF)

• Carlo Gavazzi product page

Need help choosing a current monitoring relay? Contact DAANET to discuss your application.
