Carlo Gavazzi TCD1X160200CMX 3 Phase Current Transformer, 160 A, for EM270, 2 m RJ11 Cable

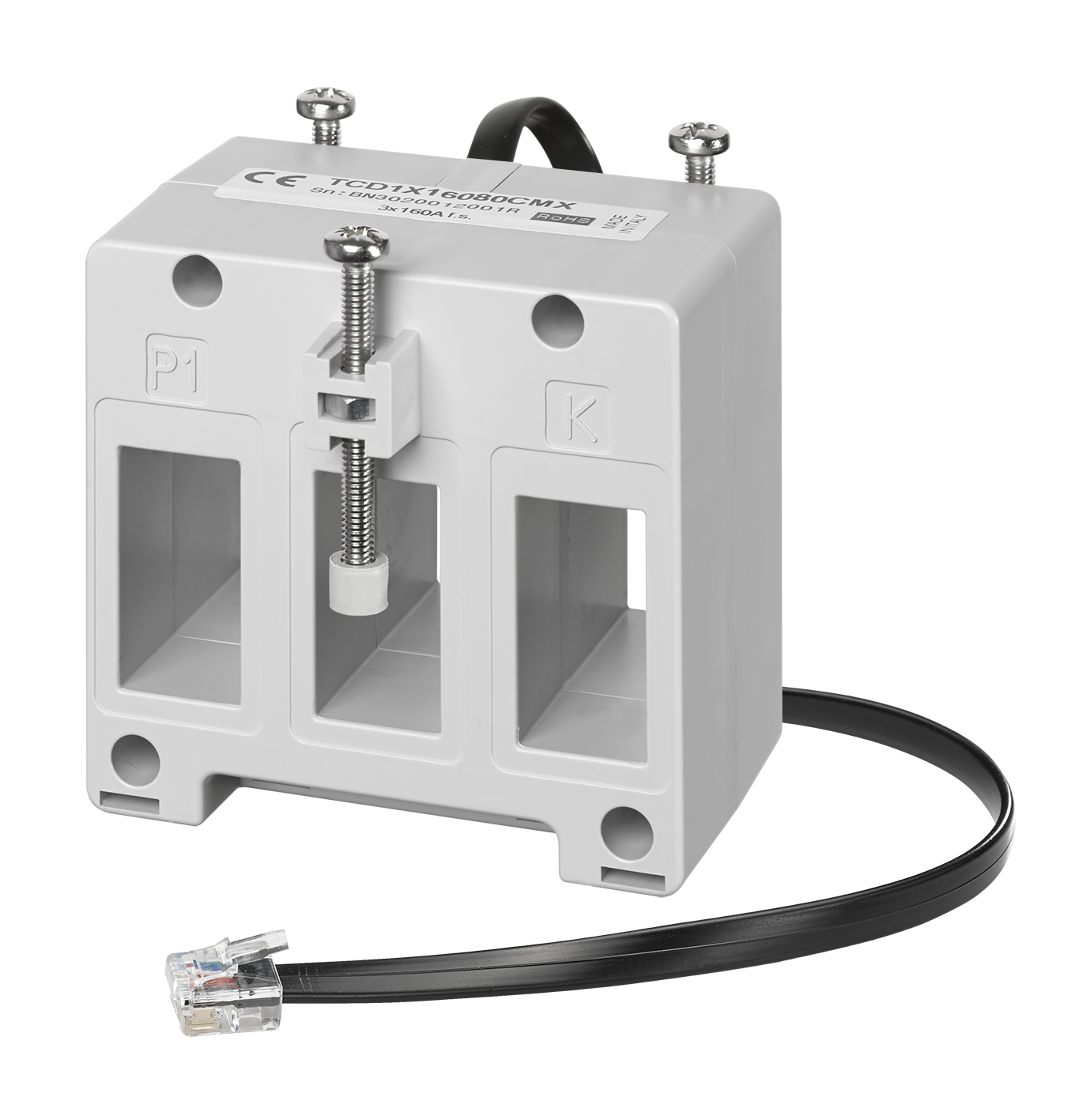

The Carlo Gavazzi TCD1X160200CMX is a triple solid core current transformer for the EM270 72D energy analyser. It connects with an RJ11 cable, and the meter reads the primary current rating and calibration data from the CT automatically, which saves setup time and improves accuracy. Its hole centres match circuit breaker busbars, so it can mount directly on the bars, on a wall or on DIN rail.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the TCD1X160200CMX locally and provide technical support to help you match the right current transformers to your energy meter.

Typical applications

• Multi circuit energy monitoring with EM270

• Switchboard and distribution board metering

• Building and tenant energy monitoring

• Retrofit metering on existing circuit breakers

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: TCD1X160200CMX

• Product range: TCD1X 3 phase current transformers

• Primary current: 160 A

• Cable: 200 cm with RJ11 connector

• Compatible meter: EM270 72D

• Hole size: 15.5 x 30.5 mm, 25 mm centres

• Accuracy class: 0.5

• Max. system voltage: 0.72 kV

• Frequency: 45 to 65 Hz

• Mounting: Busbar, panel or DIN rail (accessories included)

• Operating temperature: minus 25 to 55 °C

• Approvals: CE, cULus, UKCA

Downloads

• TCD1X datasheet (PDF)

• Carlo Gavazzi product page

Setting up multi circuit metering with the EM270? Contact DAANET to discuss your application.
