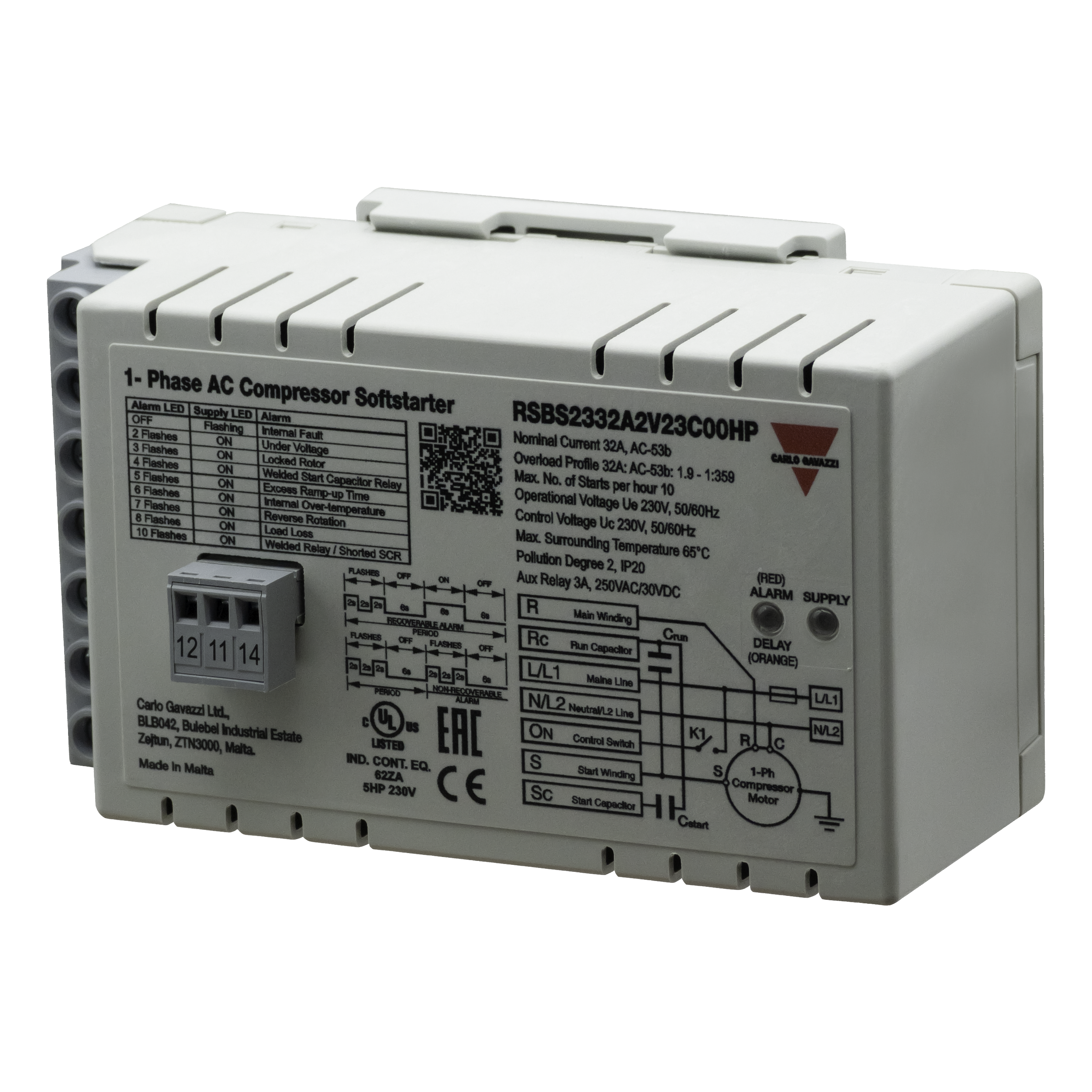

Carlo Gavazzi RSBS2332A2V23C00HP 1 Phase Compressor Soft Starter, 230 VAC, 32 A, External Start Capacitor

The Carlo Gavazzi RSBS2332A2V23C00HP is a single phase soft starter for scroll and piston compressors. It reduces compressor starting current by more than 50 %, which reduces light flicker, and needs no user adjustment. The HP function starts the compressor in under one second even against high pressure, and after ramp up the soft starter is bypassed by an internal relay. This version uses an external start capacitor and has an alarm relay output.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the RSBS2332A2V23C00HP locally and provide technical support to help you select the right soft starter for your compressor.

Typical applications

• Single phase air conditioning and heat pump compressors

• Refrigeration and cool room units

• Sites with weak supply or flicker complaints

• Compressor retrofits

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: RSBS2332A2V23C00HP

• Product range: RSBS compressor soft starters

• Operating voltage: 230 VAC (195.5 to 264.5 V)

• Rated current: 32 A

• Control voltage: 230 VAC

• Start capacitor: External

• Internal bypass: Yes

• Output: Auxiliary relay for alarm status

• Ramp up time: 600 ms

• Starts: Up to 10 per hour

• Mounting: DIN rail or panel

• Operating temperature: minus 20 to 65 °C

• Standards: IEC/EN 60947-4-2, UL 60947-4-2

Related part numbers

• RSBS2332A2V23C10HP, internal start capacitor 100 to 140 µF

• RSBS2332A2V23C17HP, internal start capacitor 145 to 175 µF

• RSBS2332A2V23C24HP, internal start capacitor 200 to 240 µF

Downloads

• RSBS datasheet (PDF)

• Carlo Gavazzi product page

Need help choosing a compressor soft starter? Contact DAANET to discuss your application.
