Carlo Gavazzi RGC3P60I65EDFP 3 Pole Proportional SSR, Phase Angle, 65 A, 180 to 660 VAC, 4 to 20 mA

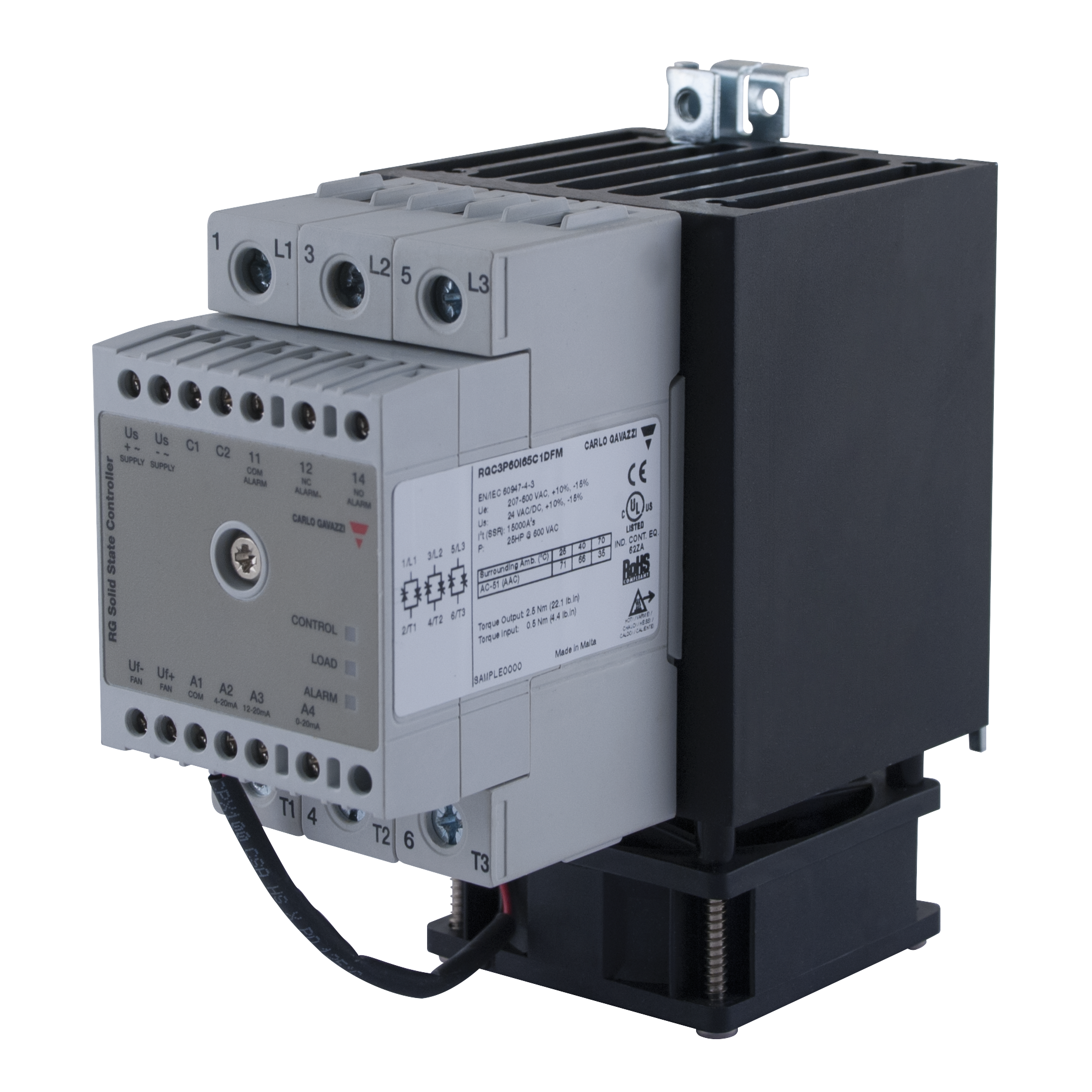

The Carlo Gavazzi RGC3P60I65EDFP is a 3 pole proportional solid state relay with integrated heatsink and fan. It controls three phase loads up to 65 A per pole at 180 to 660 VAC using phase angle switching, driven by a 0 to 20, 4 to 20 or 12 to 20 mA signal. It has built in over temperature protection and mains loss detection with an alarm relay output, and a 24 VAC/DC external supply.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the RGC3P60I65EDFP locally and provide technical support to help you select the right solid state relay for your heating or power control.

Typical applications

• Three phase heater and furnace control

• Plastics and packaging heating zones

• Infrared and process heating

• Soft control of resistive loads

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: RGC3P60I65EDFP

• Product range: RGC3P proportional solid state relays

• Poles: 3

• Switching mode: Proportional, phase angle

• Operating voltage: 180 to 660 VAC, 1200 Vp

• Rated current: 65 A AC per pole at 40 °C

• Control input: 0 to 20, 4 to 20 or 12 to 20 mA DC

• External supply: 24 VAC/DC

• Cooling: Integrated heatsink and fan

• Protection: Over temperature protection and mains loss detection, alarm relay output, built in overvoltage protection

• Mounting: DIN rail, 70 mm wide

• Standards: EN 60947-4-3, UL508 (see datasheet)

Downloads

• RGC2P and RGC3P datasheet (PDF)

• Carlo Gavazzi product page

Need help sizing a solid state relay? Contact DAANET to discuss your application.
