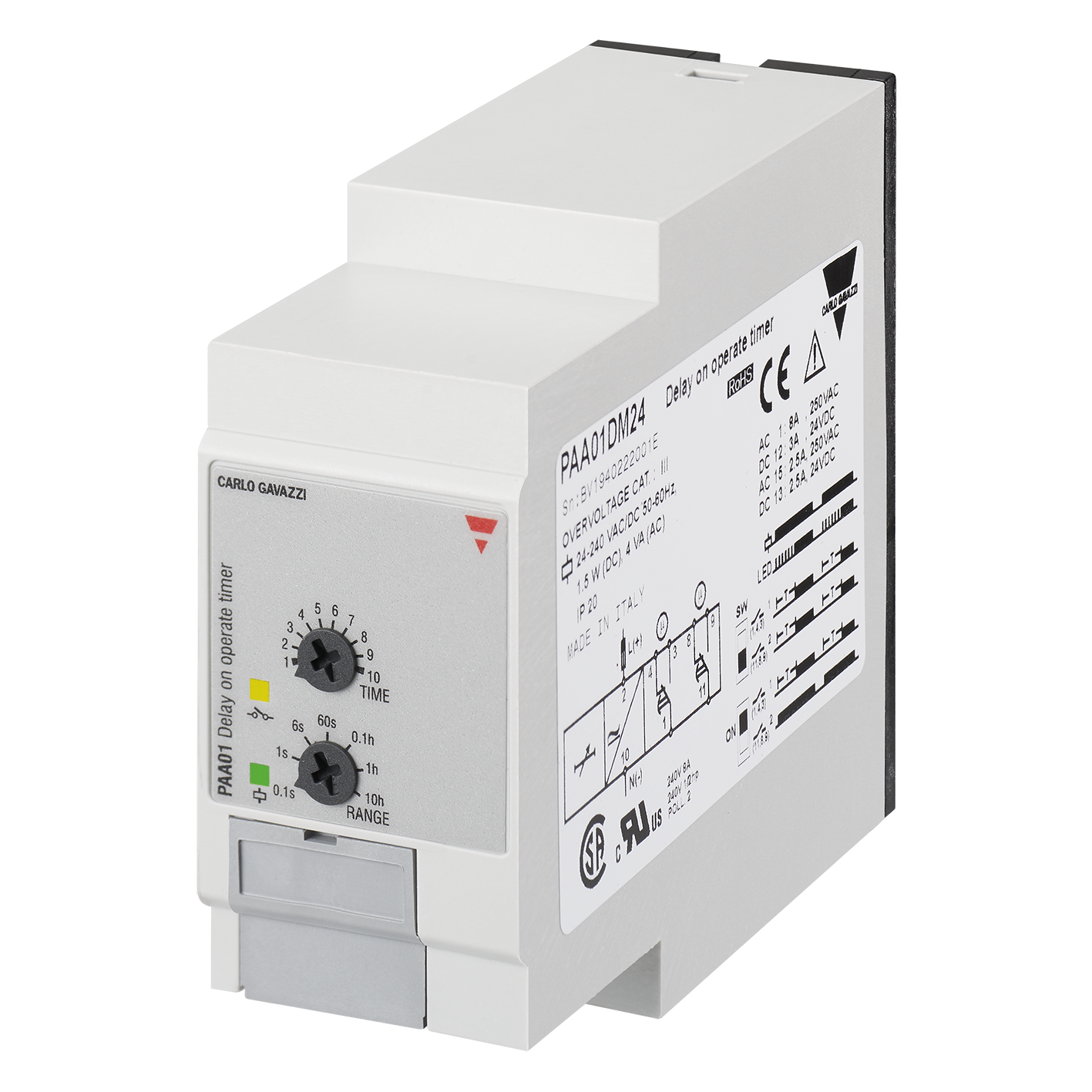

Carlo Gavazzi PAA01DM24 Plug In Delay on Operate Timer, 0.1 s to 100 h, 24 to 240 VAC/DC, 2 x SPDT

The Carlo Gavazzi PAA01DM24 is a plug in delay on operate timer with two SPDT relay outputs. The second relay can be set to switch instantly or after the delay, giving extra flexibility in control circuits. Its plug in housing makes replacement quick, as the timer can be swapped without disturbing the wiring, and the 24 to 240 VAC/DC supply suits most control voltages.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the PAA01DM24 locally and provide technical support to help you select the right product for your application.

Typical applications

• Staggered motor and pump starts

• Start up delays after power restoration

• Replacing older plug in timers

• Machine and process sequencing

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: PAA01DM24

• Product range: PAA01

• Type: Delay on operate timer, automatic start

• Time range: 0.1 s to 100 h in 7 ranges

• Power supply: 24 to 240 VAC/DC

• Outputs: 2 x SPDT relays, AC1 8 A at 250 VAC; second relay instant or delayed via DIP switch

• Housing: 36 mm plug in housing, 36 x 80 x 94 mm, IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: cURus, RCM

Downloads

• DAA01 and PAA01 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing a timer and matching socket? Contact DAANET to discuss your application.
