Carlo Gavazzi FMB01DW24 Multifunction Timer, 48 x 48 mm, 11 Pin Plug In, 0.05 s to 300 h, DPDT

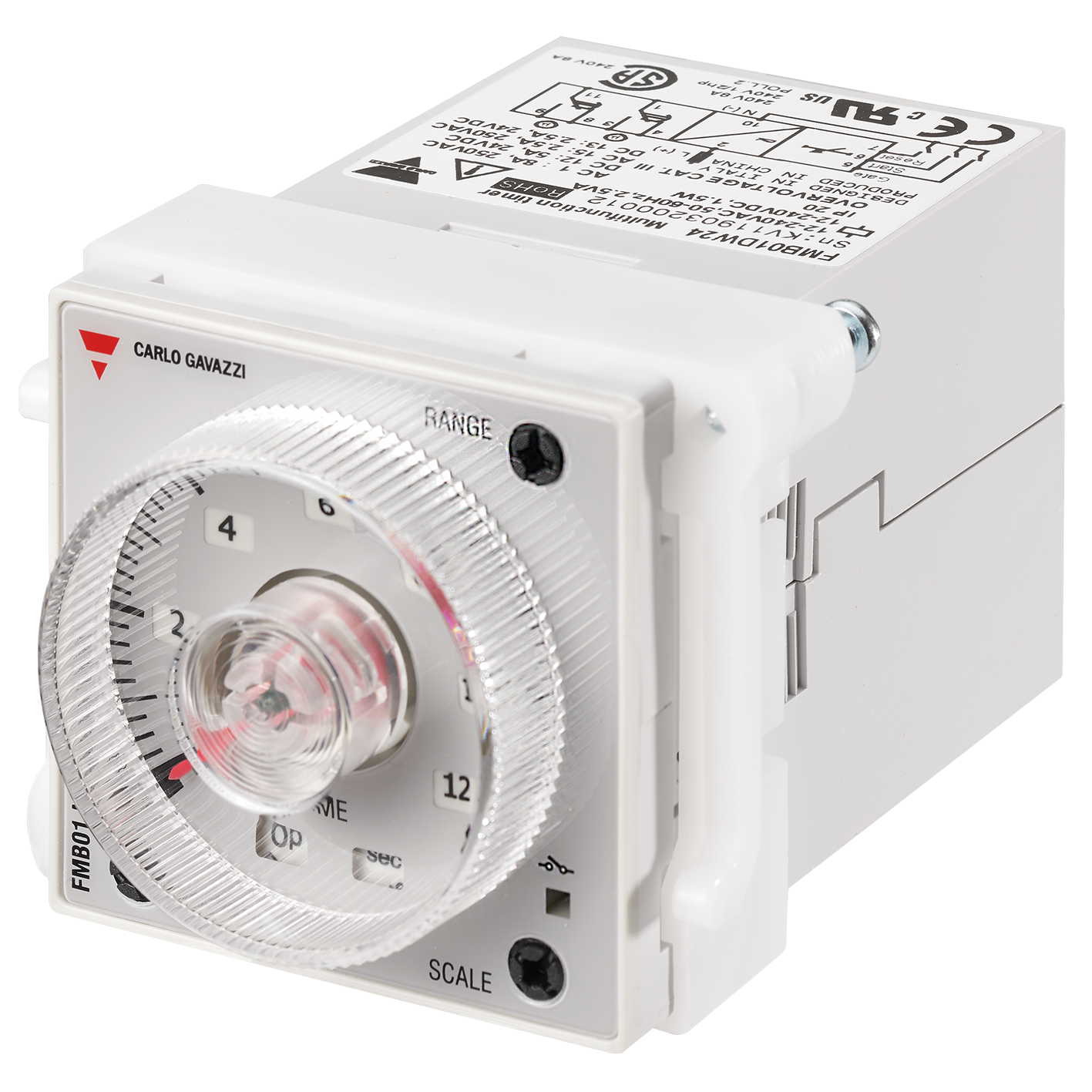

The Carlo Gavazzi FMB01DW24 is a 48 x 48 mm multifunction timer that can be panel mounted on the front of a switchboard or plugged into an 11 pin socket. Seven timing functions and a very wide time range from 0.05 s to 300 h are selected on the front, and the DPDT output switches two circuits at once. It is a popular direct replacement for older 11 pin plug in timers.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the FMB01DW24 locally and provide technical support to help you select the right product for your application.

Typical applications

• Replacing older 11 pin plug in timers

• Panel door mounted timing with front adjustment

• Motor, pump and fan delays and run on

• Machine and process sequencing

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: FMB01DW24

• Product range: FMB01

• Type: Multifunction timer

• Functions: 7: delay on operate, interval, interval on trigger open, double interval, delay on release, symmetrical recycler ON first, symmetrical recycler OFF first

• Time range: 0.05 s to 300 h

• Power supply: 12 to 240 VAC/DC

• Output: DPDT relay, AC1 8 A at 250 VAC, AC15 2.5 A at 250 VAC

• Mounting: 48 x 48 mm front panel, or 11 pin plug in socket

• Protection: IP50 front panel

• Operating temperature: minus 10 to 55 °C

• Approvals: UL, CSA

Downloads

• FMB01 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing a timer and matching socket? Contact DAANET to discuss your application.
