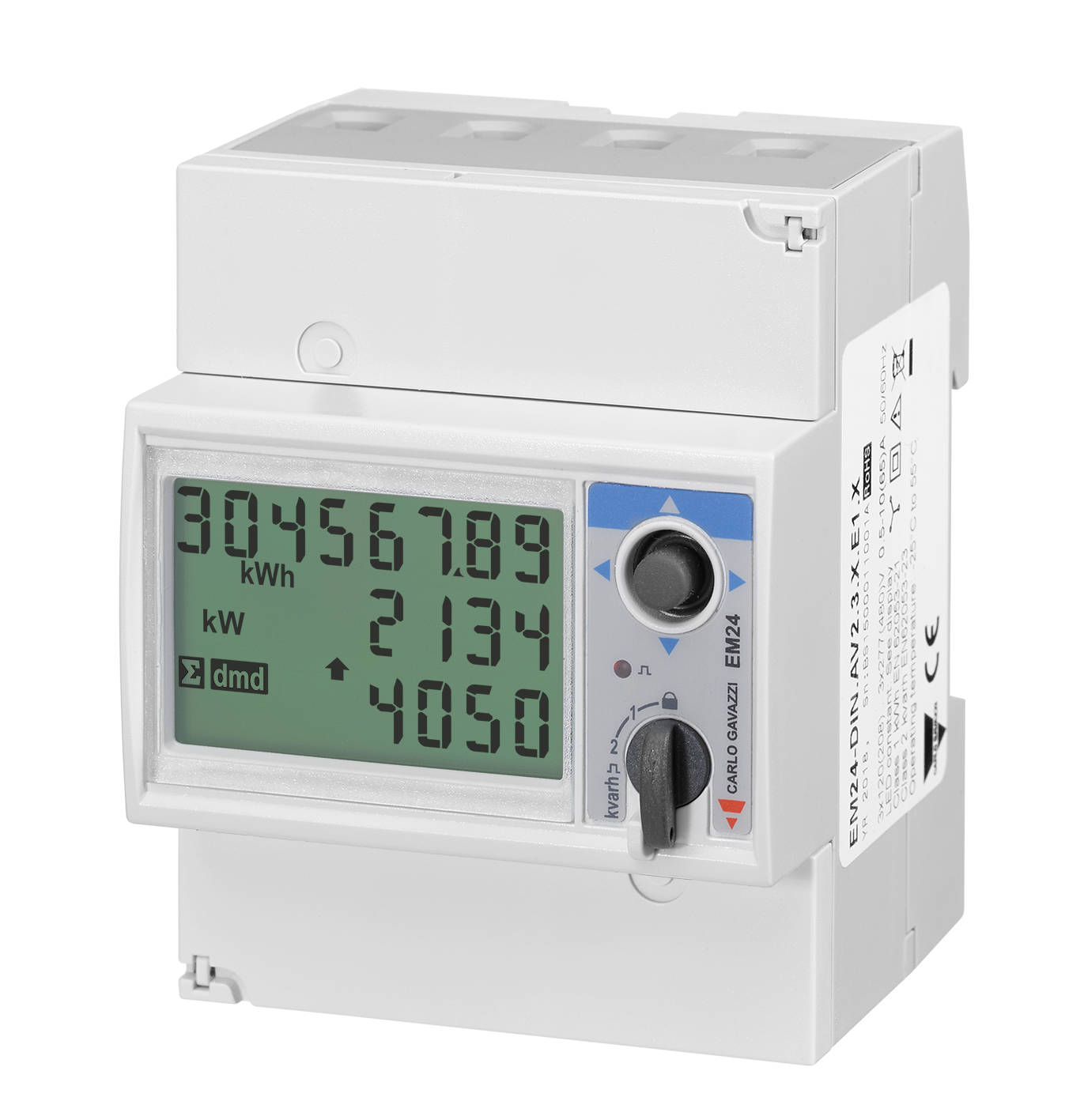

Carlo Gavazzi EM24DINAV93XISX 3 Phase Energy Analyser, 65 A Direct, Modbus RTU, DIN Rail

The Carlo Gavazzi EM24DINAV93XISX is a three phase energy analyser for direct connection up to 65 A, so no external current transformers are needed. It measures consumption and generation, shows readings on a clear three line LCD, and connects to a BMS, PLC or energy monitoring system over RS485 Modbus RTU. Three digital inputs can be used for tariff selection or for counting pulses from gas, water and other meters.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the EM24DINAV93XISX locally and provide technical support to help you select the right product for your application.

Typical applications

• Sub metering of tenancies, plant rooms and distribution boards

• Solar and generation monitoring (consumption and export)

• Energy reporting into BMS, PLC and SCADA systems

• Gas and water pulse meter collection via digital inputs

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: EM24DINAV93XISX

• Product range: EM24

• Type: Three phase energy analyser, direct connection

• Voltage: 230 V L-N, 400 V L-L (1 phase 2 wire, 3 phase 3 or 4 wire)

• Frequency: 50 or 60 Hz

• Current: Direct connection, 10 A base, 65 A max

• Accuracy: Active energy class 1 (EN IEC 62053-21), reactive energy class 2 (EN IEC 62053-23)

• Energy metering: Consumption and generation

• Communication: RS485 Modbus RTU

• Digital inputs: 3, for tariff management, pulse counting or remote status

• Display: 3 line LCD

• Power supply: Self powered

• Mounting: DIN rail

• Protection: IP50 front, IP20 terminals

• Operating temperature: minus 25 to 55 °C

• Approvals: CE, UKCA. This is not a MID certified model

Downloads

• EM24 datasheet (PDF)

• Installation manual (PDF)

• Modbus communication protocol (PDF)

• Carlo Gavazzi product page

Need help choosing an energy meter for your switchboard? Contact DAANET to discuss your application.
