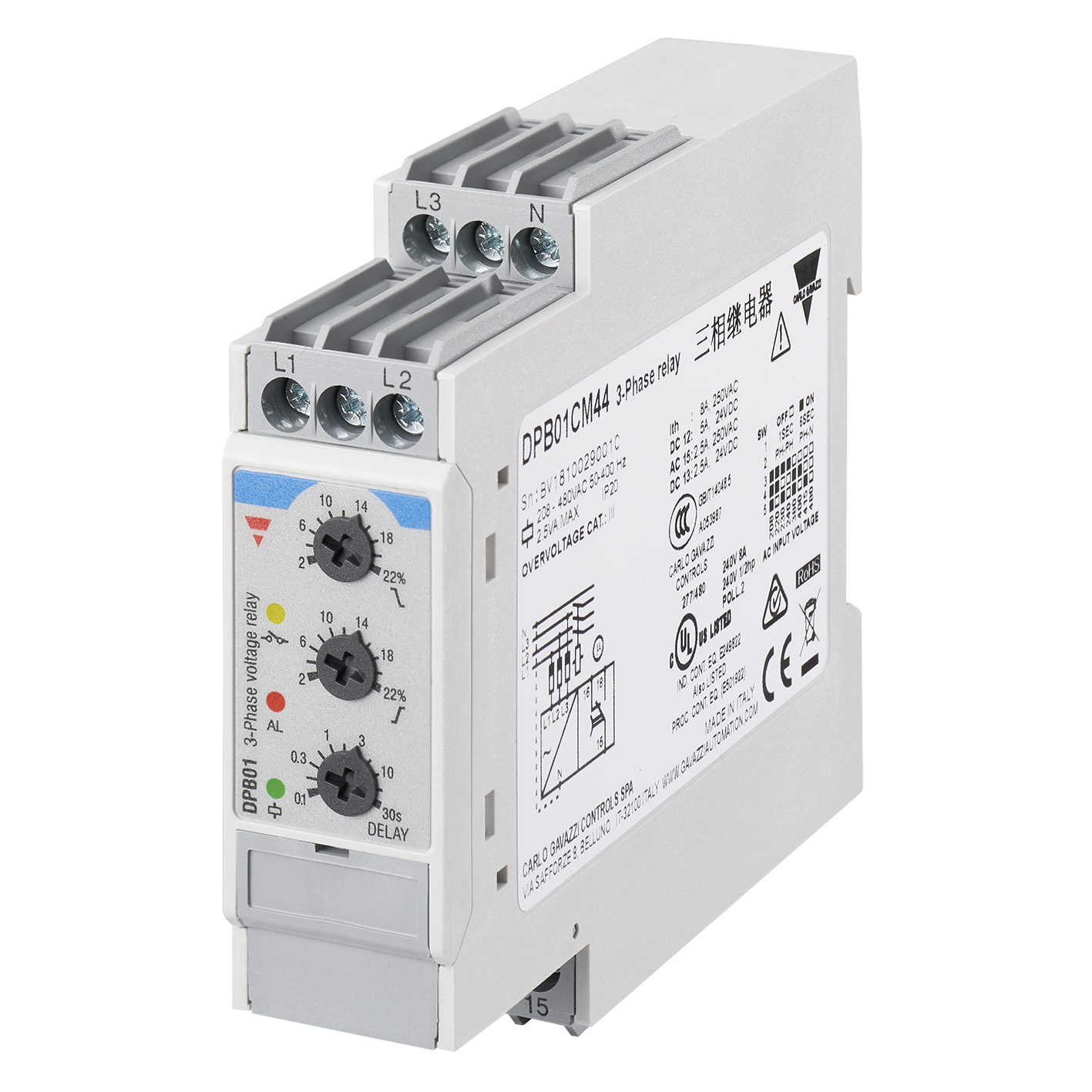

Carlo Gavazzi DPB01CM48N 3 Phase Voltage Monitoring Relay, Over / Under Voltage, Phase Loss, 380 to 480 VAC

The Carlo Gavazzi DPB01CM48N is a 3 phase voltage monitoring relay that protects motors and equipment from phase loss, over voltage and under voltage. The over and under voltage limits and the alarm delay are set on front dials, and the relay is powered from the monitored supply, so no separate auxiliary supply is needed. It suits 380 to 480 VAC systems, with or without neutral.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DPB01CM48N locally and provide technical support to help you select the right product for your application.

Typical applications

• Motor and pump protection on 400 V supplies

• Switchboards and motor control centres

• HVAC plant, chillers and compressors

• Generator and supply quality monitoring

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DPB01CM48N

• Product range: DPB01

• Function: Phase loss, over voltage and under voltage monitoring (no phase sequence monitoring)

• Nominal voltage: 380 to 480 VAC L-L (323 to 552 VAC operating range)

• Mains type: 3P or 3P+N, set by DIP switch

• Frequency: 50 to 60 Hz

• Settings: Over and under voltage 2 to 22% in 2% steps, alarm delay 0.1 to 30 s, power on delay 1 or 6 s

• Power supply: Self powered from the monitored phases

• Output: 1 x SPDT relay, de energised on alarm, AC15 2.5 A at 250 VAC

• Housing: 22.5 mm DIN rail, IP20

• Operating temperature: minus 20 to 60 °C

• Approvals: CE marked; see the Carlo Gavazzi product page for current certificates

Downloads

• DPB01 datasheet (PDF)

• Carlo Gavazzi product page

Need help choosing a voltage monitoring relay? Contact DAANET to discuss your application.
