Carlo Gavazzi DPA01CM44 3 Phase Monitoring Relay, Phase Loss and Sequence, 22.5 mm DIN Rail

The Carlo Gavazzi DPA01CM44 is a 3 phase monitoring relay that protects motors, pumps and machines from phase loss and incorrect phase sequence. The relay operates only when all three phases are present and in the correct sequence, so equipment cannot start or keep running on a faulty supply. It also detects regenerated voltage, and is powered from the monitored phases, so no separate supply is needed.

DAANET is the authorised Australian distributor for Carlo Gavazzi. We supply the DPA01CM44 locally and provide technical support to help you select the right product for your application.

Typical applications

• Motor protection on pumps, fans and compressors

• Conveyors and materials handling

• HVAC plant and chillers

• Machine control panels and switchboards

Key specifications

• Manufacturer: Carlo Gavazzi

• Part number: DPA01CM44

• Product range: DPA01

• Function: 3 phase loss and phase sequence monitoring

• Nominal voltage: 208 to 480 VAC L-L (177 to 552 VAC operating range)

• Frequency: 50 to 60 Hz

• Power supply: Self powered from the measured phases (L2, L3)

• Output: 1 x SPDT relay, de energised on alarm, AC15 2.5 A at 250 VAC

• Response time: Delay ON under 100 ms, delay OFF under 350 ms

• Housing: 22.5 mm DIN rail, IP20

• Operating temperature: minus 20 to 60 °C (50 Hz)

Related part numbers

• DPA51CM44 compact 17.5 mm version

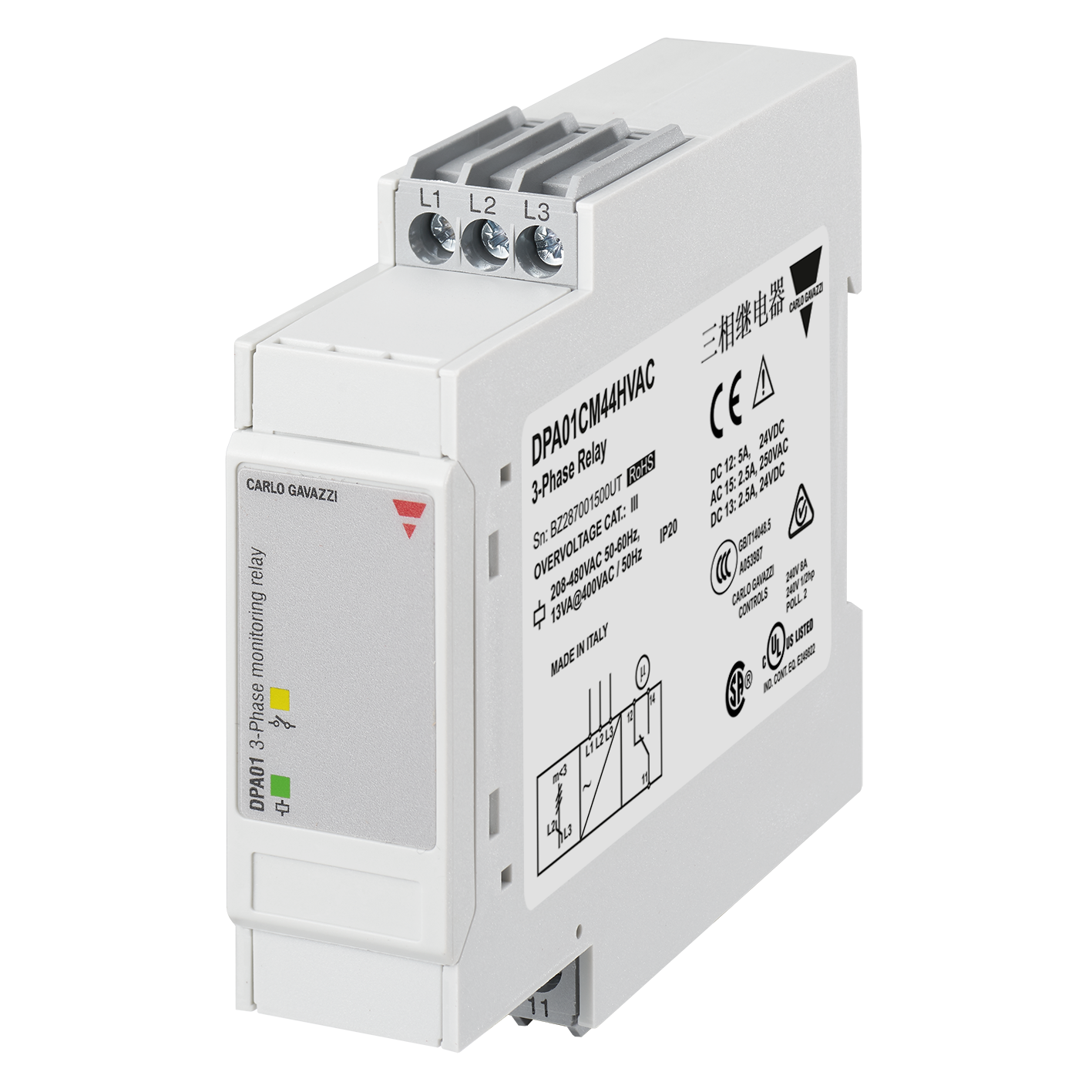

• DPA01CM44HVAC version for HVAC equipment

Downloads

• DPA01 datasheet (PDF)

• Installation manual (PDF)

• Carlo Gavazzi product page

Need help choosing a phase monitoring relay? Contact DAANET to discuss your application.
